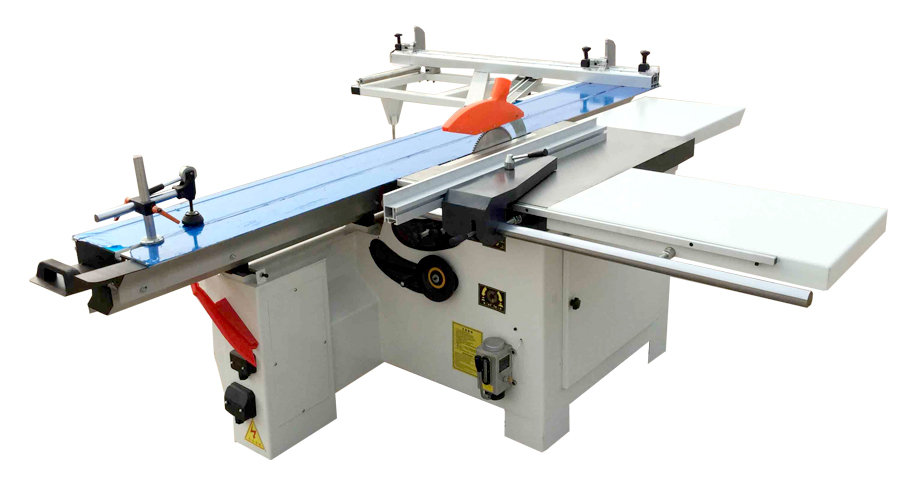

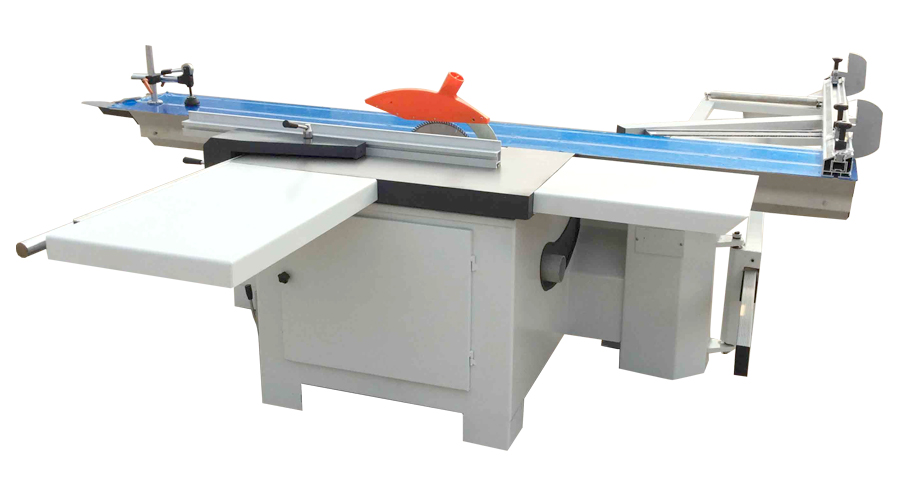

Mid Range Table Saw
- $2300USD/set *FOB Qingdao
- CNF/CIF Price will be given upon inquiry
- Stocks depends on the machine voltage required
- Wooden box packing or thick film packing
- 220v/380v (1phase/3phase) 50hz/60hz
- 1-year warranty, 3 months for wear and tear parts

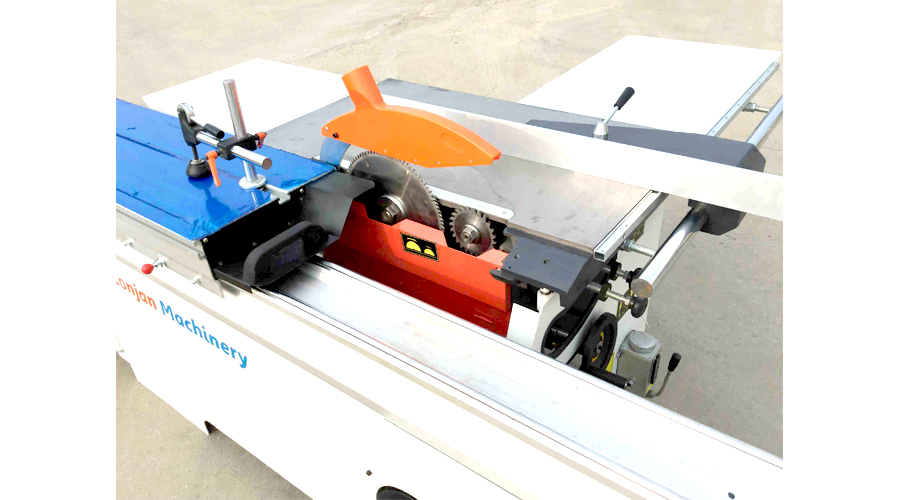

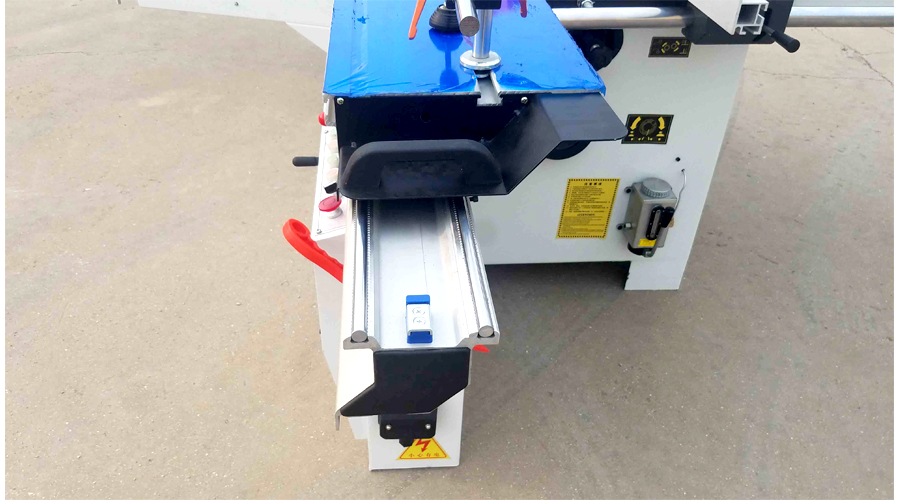

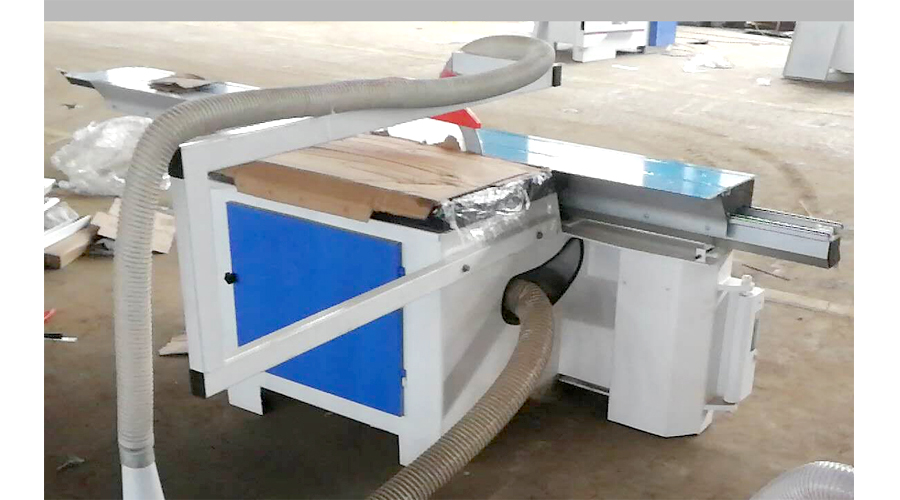

H series table saw will bring you the upgraded version on top of F series table saw, with better durability, heavier sliding table, more powerful motor, sturdy machine structure, and upper dust collection design.
Support customization and DIY, optional features, like:
- machine colour
- table length
- motor power
- saw cover
- 90-degree cutting only
- digital display of saw
*extra cost may involve for optional features

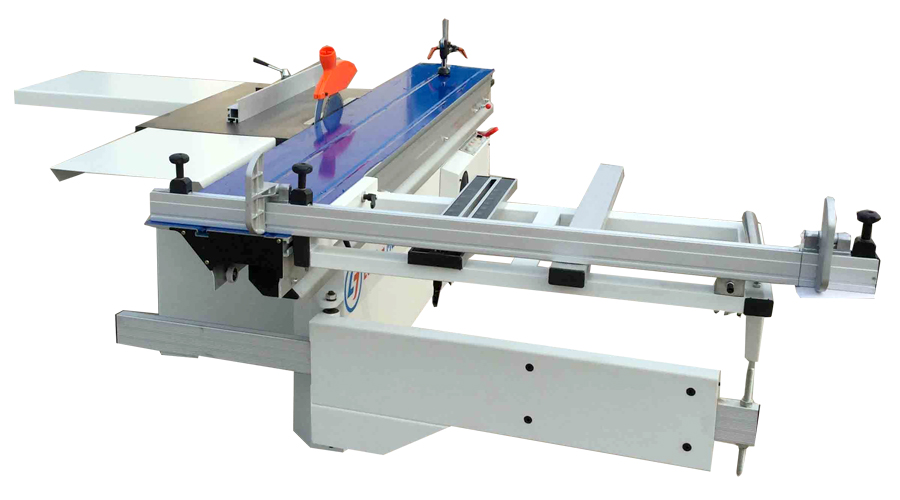

Dimension of Sliding Table | 2800x375mm |
Max.Cutting Length | 2800mm |
Max.Cutting Width | 1250mm |
Max.Cutting Height | 70mm |
Max.Cutting Height at 45° | 60mm |
Main Saw Blade Diameter | 300mm/30mm |
Scoring Saw Blade Diameter | 120mm/20mm |
Speed of Main Saw Shaft | 6000r/min |
Main Saw Shaft Diameter | 30mm |
Speed of Scoring Saw Shaft | 8000r/min |
Scoring Saw Shaft Diameter | 20mm |
Motor Power | 5.5kW+1.1kW |
Tilting Saw Blade | 0°-45° |
Overall Dimensions | 2800*1100*1200mm |
Gross Weight | 700KG |
