English instruction manual x 1, toolkit x 1, scraping knife x 2, polishing wheels x 2, rail track piecex10

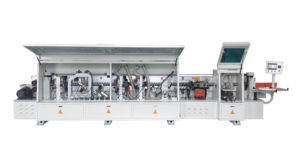

Premium High-End Edge Banding Machine
- $12500USD/set *FOB Qingdao
- CNF/CIF Price will be given upon inquiry
- Stocks depends on the machine voltage required
- Wooden box packing or thick film packing
- 220v/380v (1phase/3phase) 50hz/60hz
- 1-year warranty, 3 months for wear and tear parts

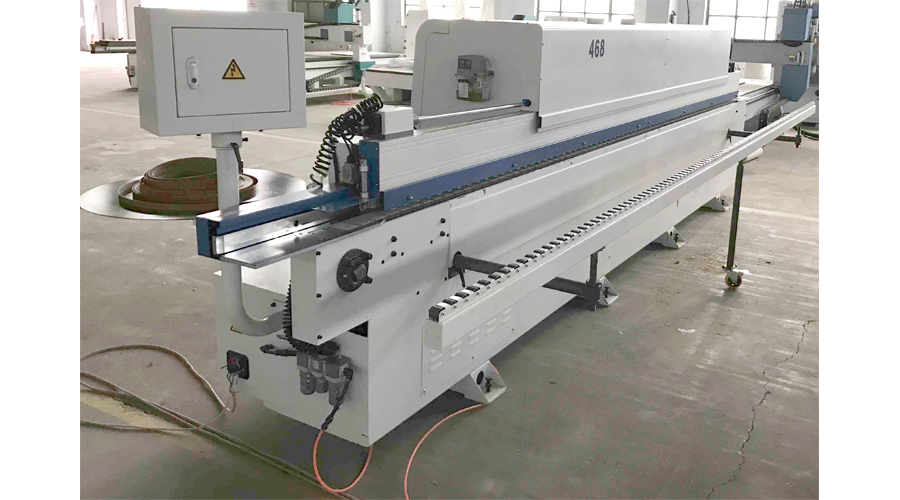

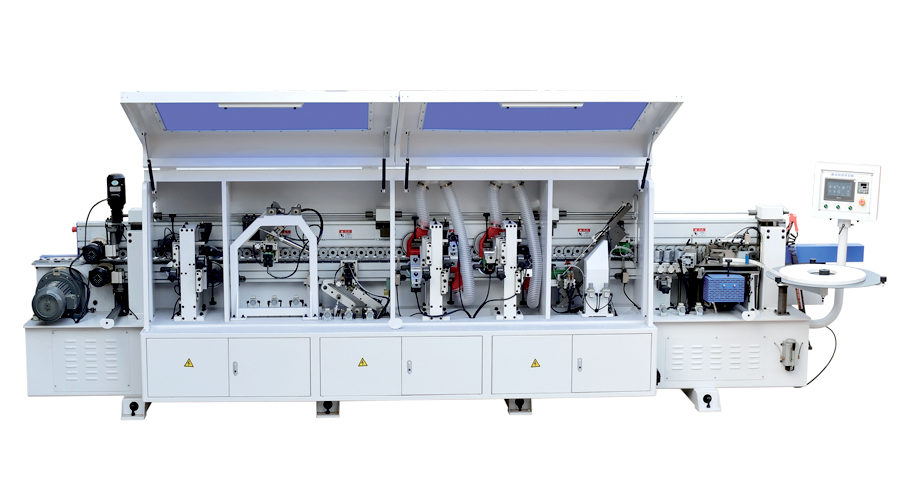

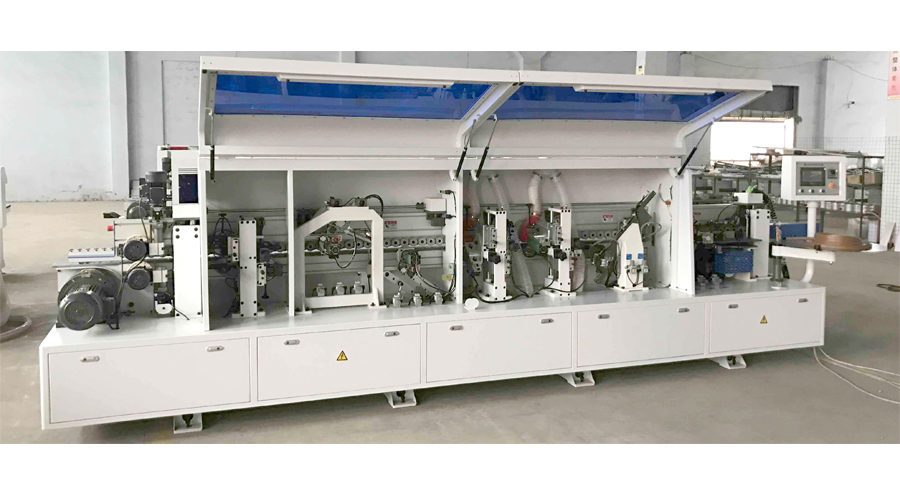

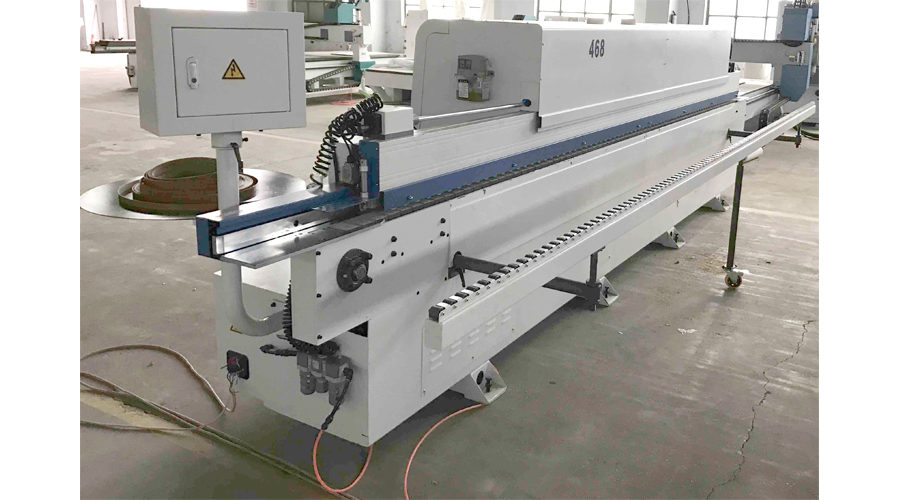

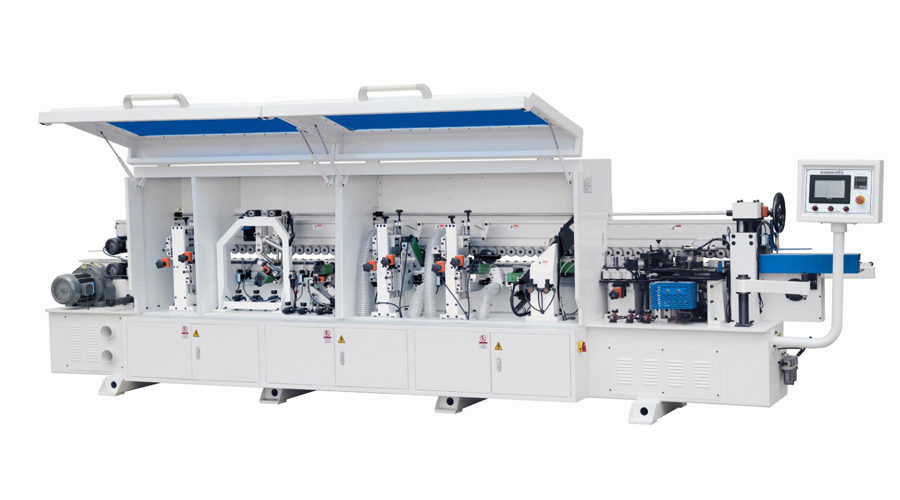

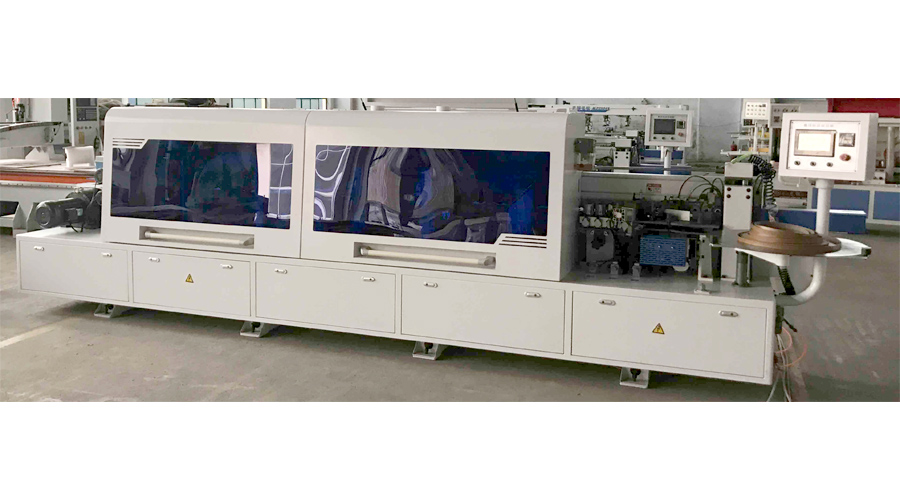

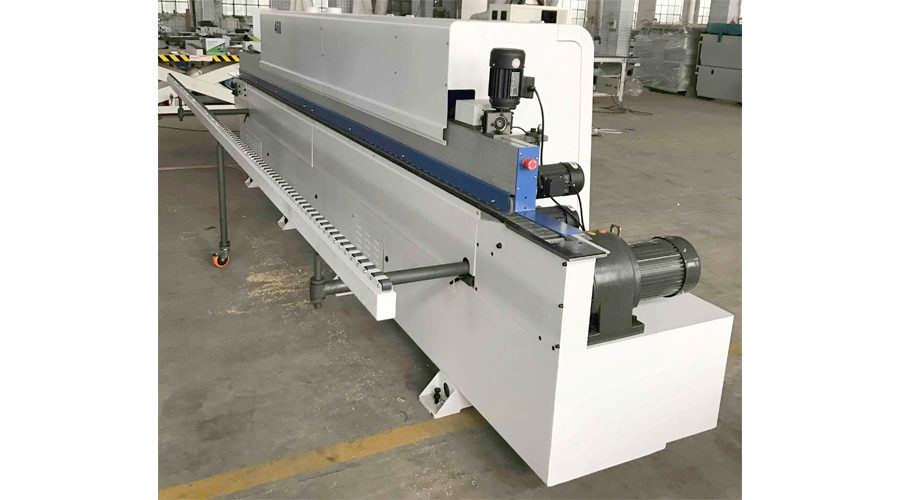

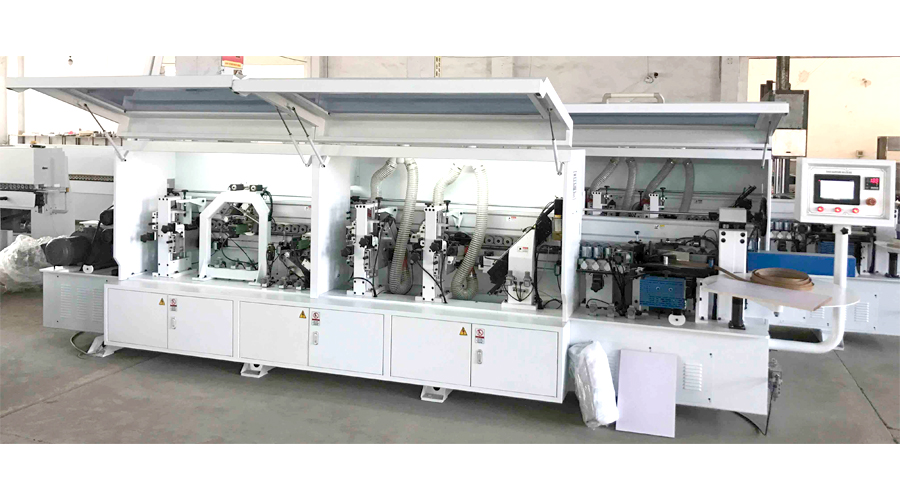

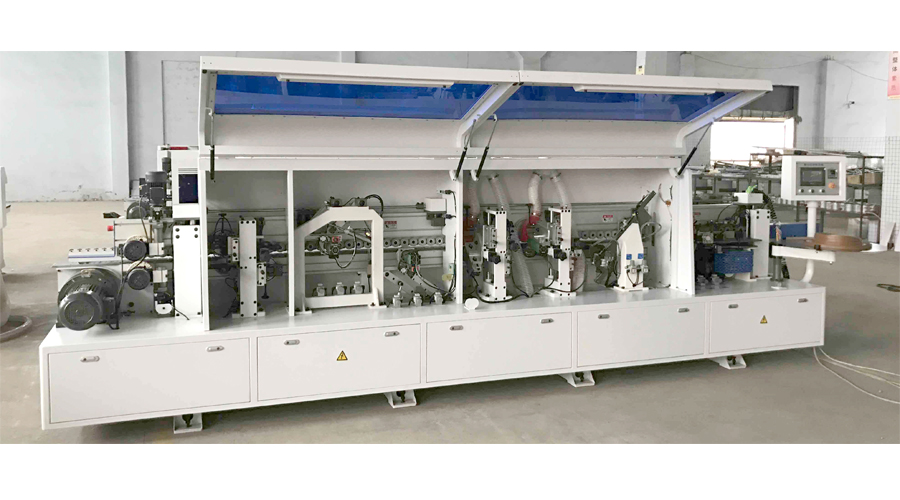

S800F Edge Banding Machine – Outstanding Expertise for the Highest Requirements.
This machine comes with heavy-duty mechanics to bring you the edge-banding productivity, versatility and precision for perfect edge banding result.
1 Existing functional units: Gluing -> End Cutting -> Rought Trimming -> Fine Trimming -> Corner Rounding -> Scraping -> Buffing
2 Main features highlights:
- Digital Touch Screen Control Panel
- Electric Lift for Panel Thickness
- 3 Adjustable Feeding Speed (Low, Mid, High)

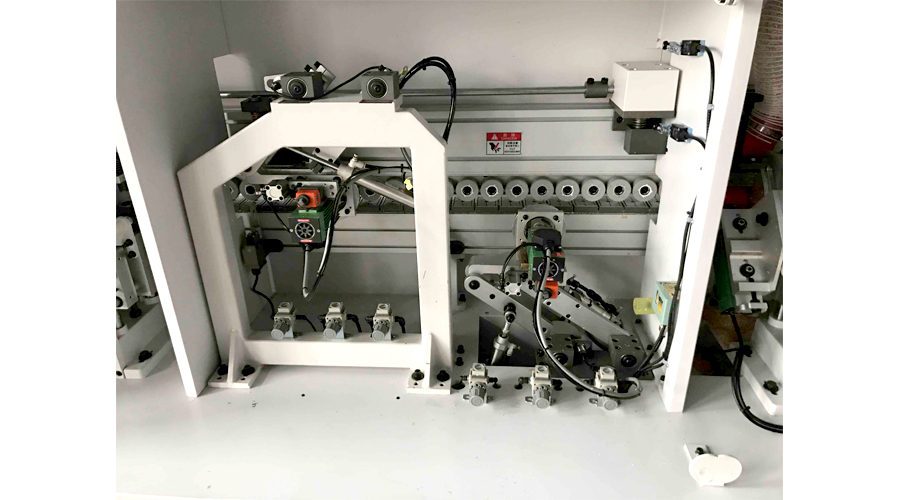

- Auto Corner Rounding
3 Other optional features:
- Auto Cleaning Unit
- Pre-milling
- Grooving
- Pneumatic Scraping
- Flat Scraping
- Thermal Transfer
| Model | S800F |
| Motor | 11.2kW |
| Voltage | 380v or as your request |
| Dimension | 6000X1000X1600mm |
| Feed Speed | 15~23m/min (3 Adjustable Speeds) |
| Panel Thickness | 10-60mm |
| Panel Width | ≥60mm |
| Panel Length | ≥120mm |
| Tape Thickness | 0.4-3mm |
| Working Pressure | 0.6-0.8MPa |
| Net Weight | 2500kg |
