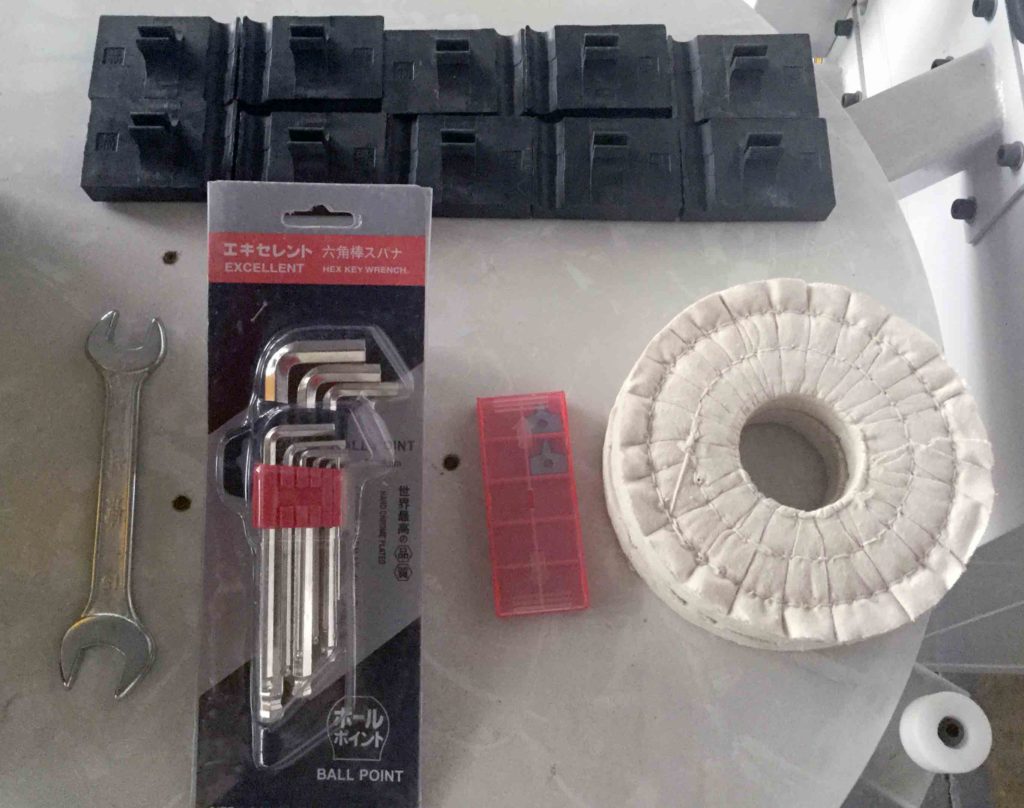

English instruction manual x 1, toolkit x 1, scraping knife x 2, polishing wheels x 2, rail track piecex10

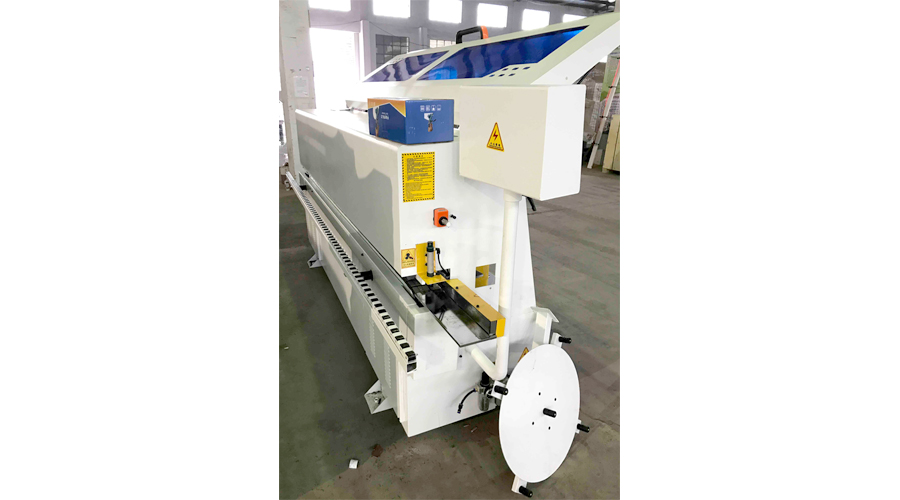

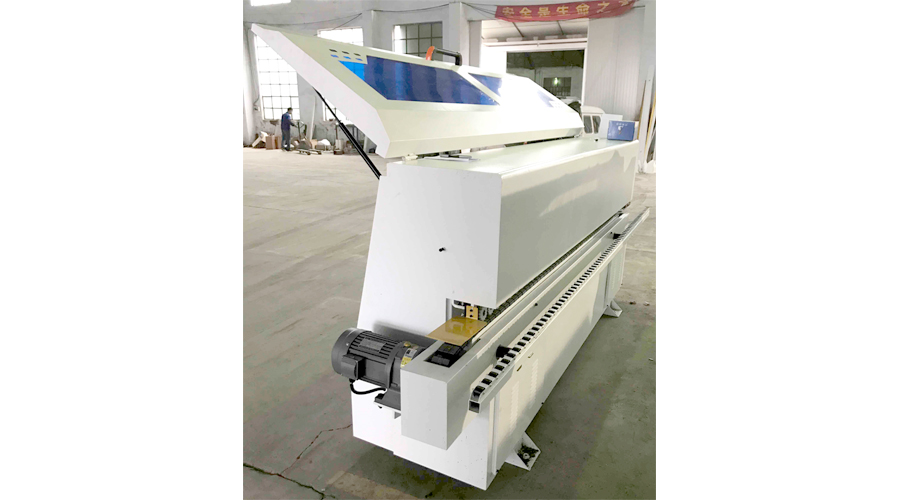

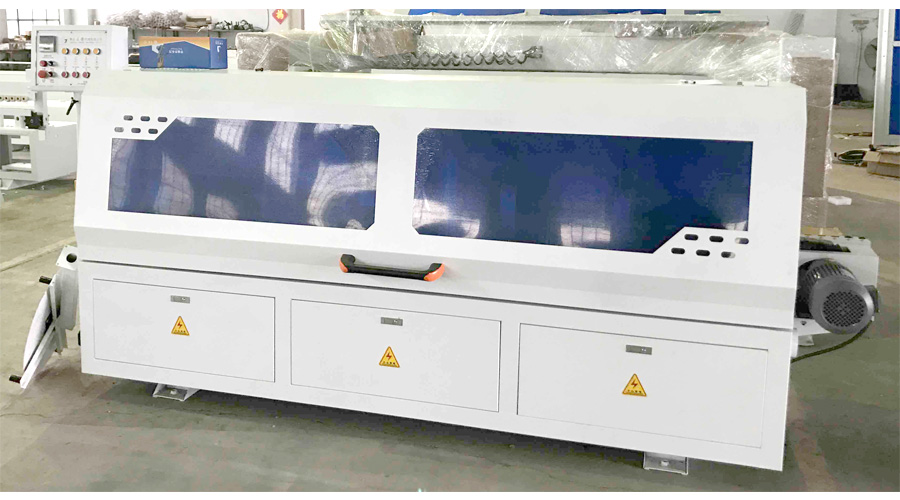

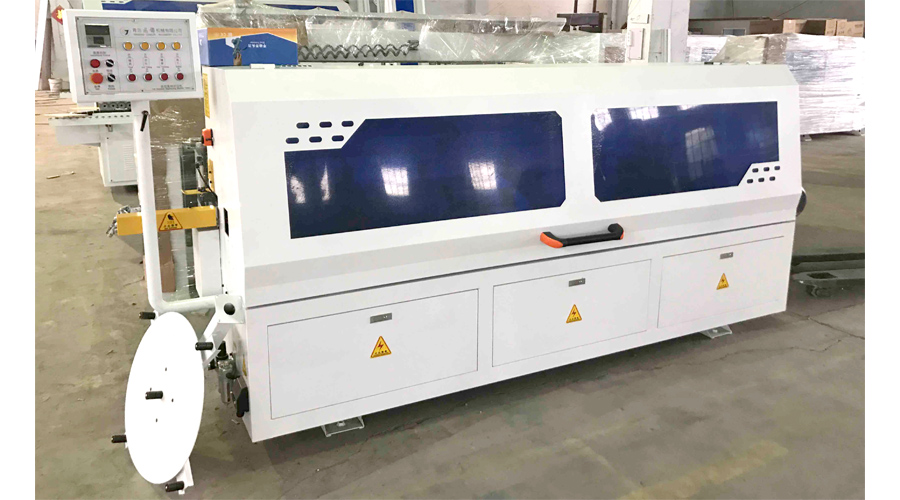

Full Auto Edge Banding Machine
- $5000USD/set *FOB QINGDAO
- CNF/CIF Price will be given upon inquiry
- Stocks depends on the machine voltage required
- Wooden box packing
- 110v/220v/380v – 1phase/3phase – 50hz/60hz
- 1-year warranty, 3 months for wear and tear parts

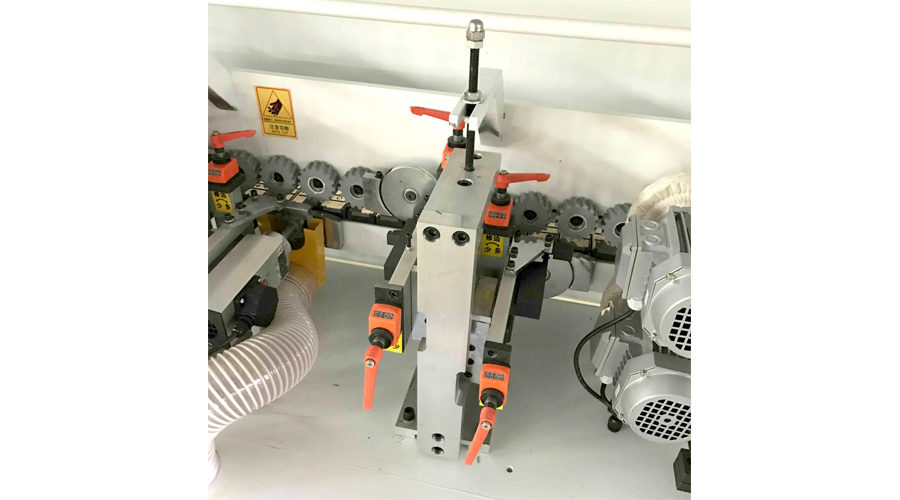

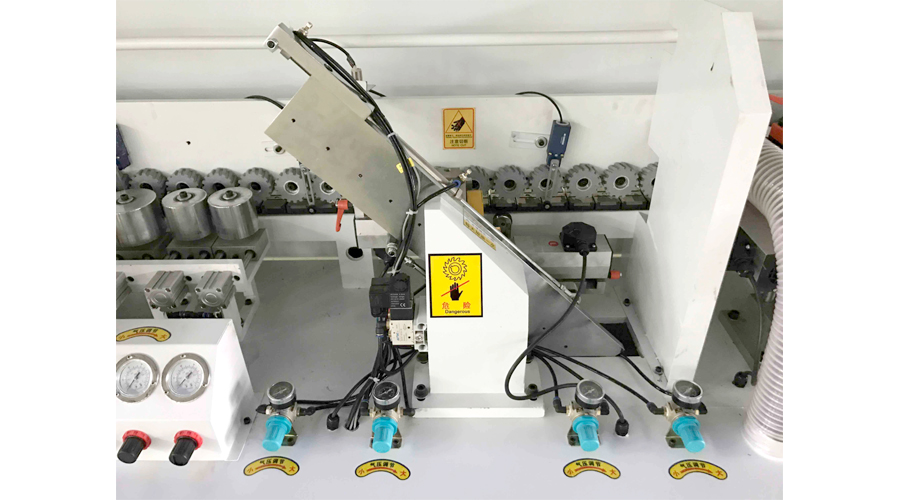

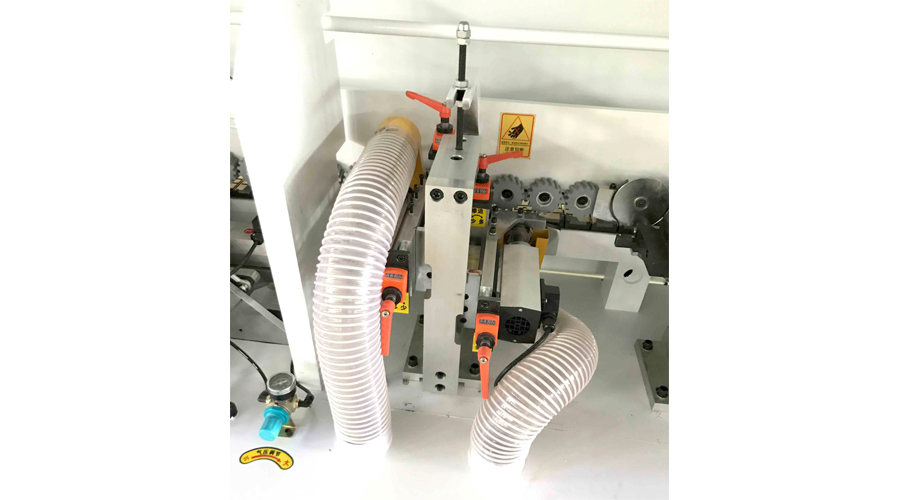

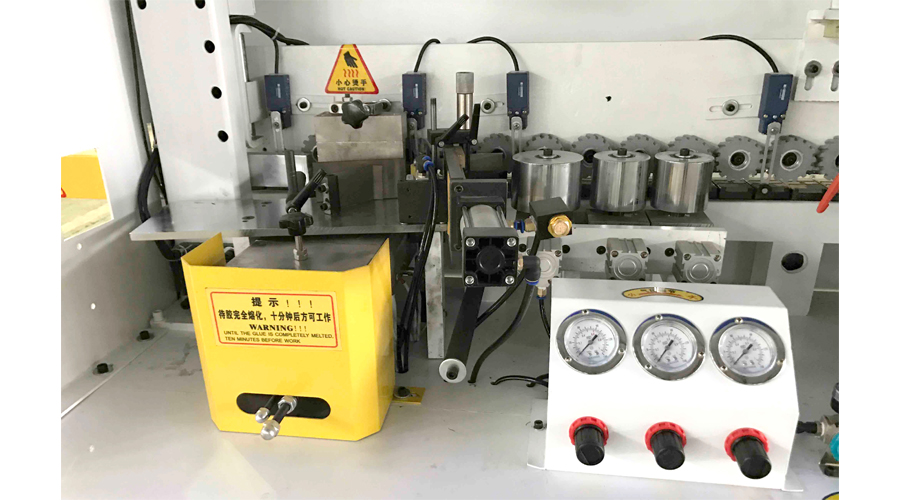

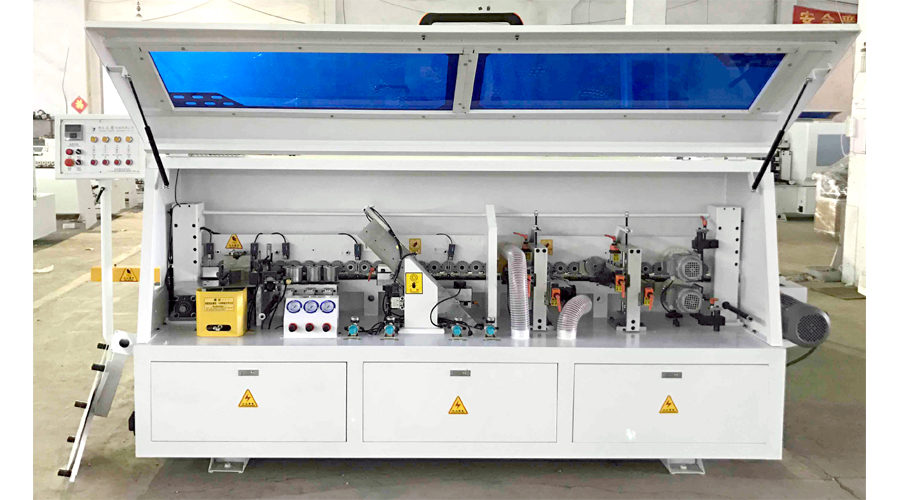

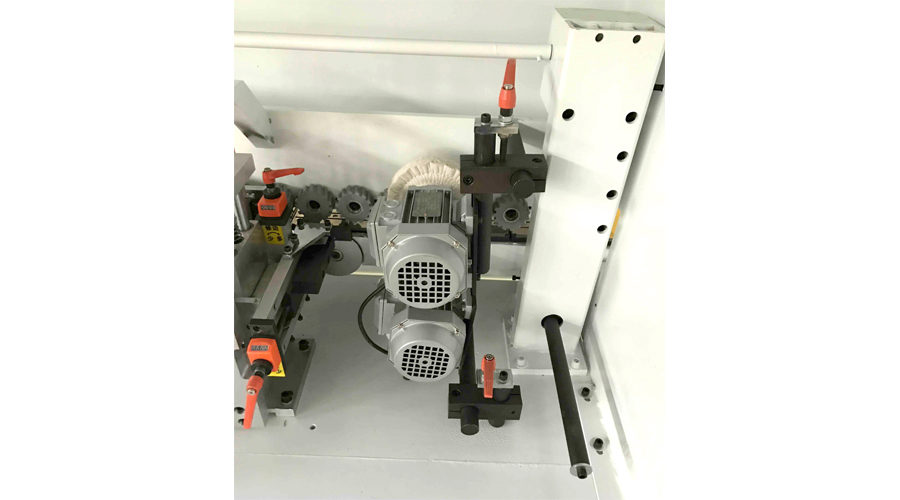

Fully automatic edge bander F500C, is an absolutely ideal solution for auto edge banding works with reasonable price, comes with glueing, end cutting fine trimming, scraping, buffing, and 13m/min feeding belt.
Support customization and DIY, optional features, like:
- machine colour
- rough trimming unit
- pre-milling unit
- grooving unit
- digital touch screen
- 3 variable & adjustable feeding speed (low, mid, high)
*extra cost may involve for optional features
| Model | F500C |
| Motor | 5.5kW |
| Voltage | 110v/220v/380v/415v/440v |
| Dimension | 4100x800x1600mm |
| Feed Speed | 13m/min |
| Panel Thickness | 10-60mm |
| Panel Width | ≥80mm |
| Panel Length | ≥120mm |
| Tape Thickness | 0.4-3mm |
| Working Pressure | 0.6 – 0.8mpa |
| Weight | 1500kg |
Related products
-

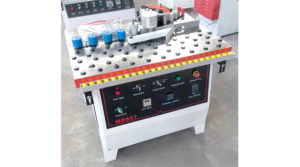

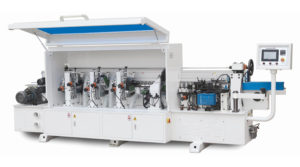

Auto Edge Banding Machine S800C $8,500.00 -
-
-
